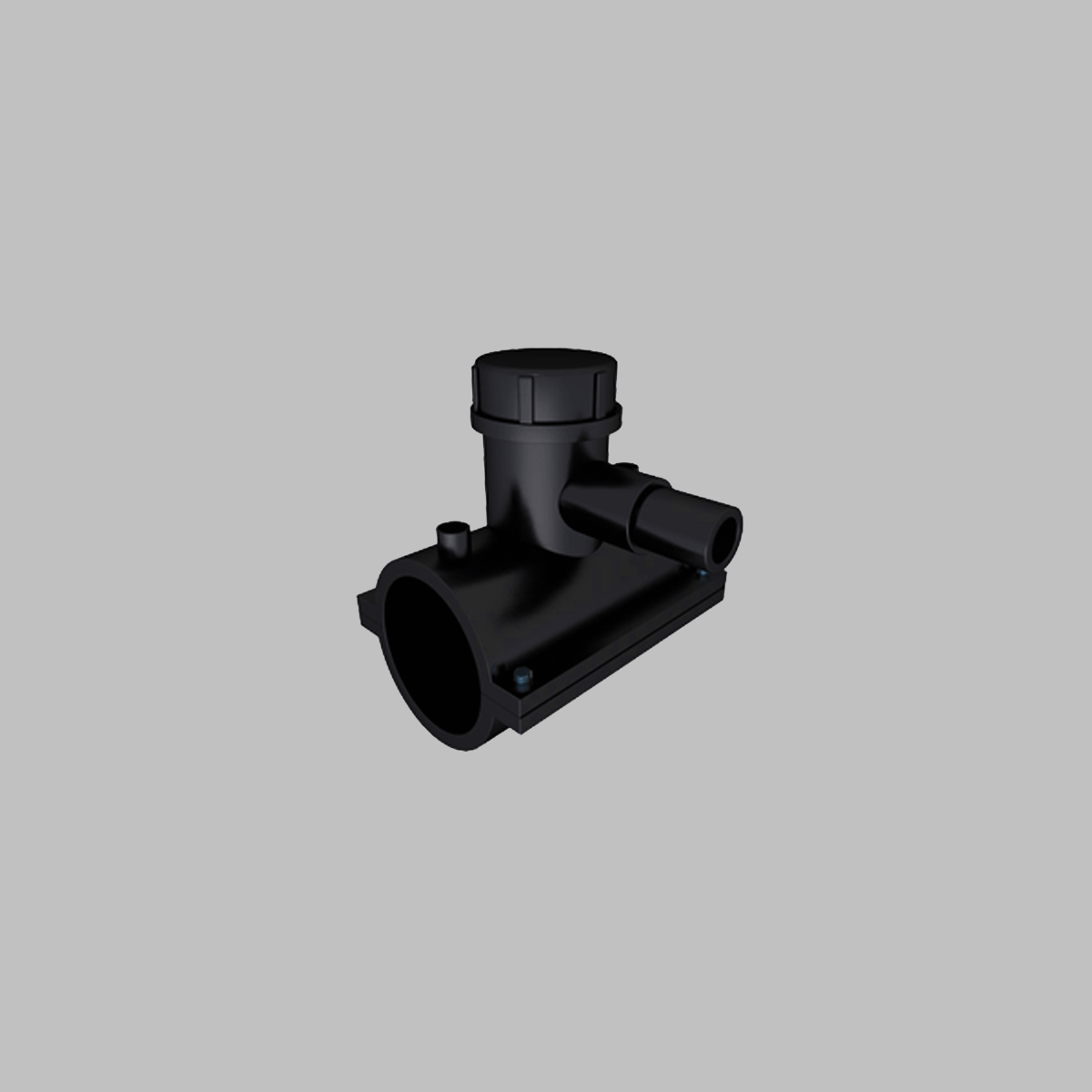

Branch saddle tee

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

PE100, SDR 11, PN16-S5

The electrofusion fittings are produced from polyethylene (PE), and the construction of those contain one or several intergated heating elements, which ensure transformation of electricity into the heat of fusion. The result of applying electrofusion fittings is solid and safe joint of pipe and any other elements belonging to the pipeline system. Electrofusion joint features excellent pressure resistance and tightness. Pressure resistance of the whole range is PN16.

dn/dn1 [mm]
df [mm]
h1 [mm]
h2 [mm]
h [mm]
Z [mm]
h 3 [mm]
Pack [pcs]
Code
40 20 18 54 60 98 91 54 1 412208040020
25 18 54 60 98 91 54 1 412208040025
50 20 18 54 71 104 101 54 1 412208050020
25 18 54 71 104 101 54 1 412208050025
32 18 78 40 77 102 60 1 412208050032
63 20 25 90 55 101 110 70 1 412208063020
25 25 90 55 101 110 70 1 412208063025
32 25 105 55 101 110 70 1 412208063032
40 25 120 55 101 110 70 1 412208063040
50 33 80 96 201 110 80 1 412208063050
63 33 75 96 201 110 75 1 412208063063
75 20 25 90 63 95 125 70 1 412208075020
25 25 90 63 95 125 70 1 412208075025
32 26 107 74 105 125 70 1 412208075032
40 25 120 63 95 125 72 1 412208075040
50 30 120 63 97 125 72 1 412208075050
63 30 120 63 97 125 93 1 412208075063
90 20 25 90 70 100 125 70 1 412208090020
25 25 90 70 100 125 70 1 412208090025
32 25 105 70 100 125 70 1 412208090032
40 25 120 70 100 125 72 1 412208090040
50 30 120 70 102 125 72 1 412208090050
63 30 120 70 102 125 93 1 412208090063
110 20 25 92 78 104 160 72 1 412208110020
25 25 92 88 101 160 72 1 412208110025
32 26 107 84 105 160 70 1 412208110032
40 25 120 80 101 160 72 1 412208110040
50 30 120 80 103 160 72 1 412208110050
63 30 120 80 103 160 83 1 412208110063
125 20 25 90 87 102 160 70 1 412208125020
25 25 90 87 102 160 70 1 412208125025
32 25 108 84 102 160 70 1 412208125032
40 25 120 87 102 160 72 1 412208125040
50 30 120 87 104 160 72 1 412208125050
63 30 120 87 104 160 83 1 412208125063
140 20 25 90 96 94 160 70 1 412208140020
25 25 90 96 94 160 70 1 412208140025
32 25 105 96 94 160 70 1 412208140032
40 25 120 96 94 160 72 1 412208140040
50 30 120 96 96 160 72 1 412208140050
63 30 120 96 96 160 73 1 412208140063
160 20 27 90 108 104 160 70 1 412208160020
25 25 90 104 100 160 70 1 412208160025
32 25 106 105 105 160 70 1 412208160032
40 25 120 104 100 160 72 1 412208160040
50 30 120 104 102 160 72 1 412208160050
63 30 120 104 102 160 72 1 412208160063
180 20 25 90 110 101 160 70 1 412208180020
25 25 90 110 101 160 70 1 412208180025
32 25 105 110 101 160 70 1 412208180032
40 25 120 110 101 160 72 1 412208180040
50 30 120 110 103 160 72 1 412208180050
63 30 120 110 103 160 72 1 412208180063
200 20 25 90 126 91 160 70 1 412208200020
25 25 90 126 91 160 70 1 412208200025
32 25 105 126 91 160 70 1 412208200032
40 25 120 126 91 160 72 1 412208200040
50 30 120 126 93 160 72 1 412208200050
63 30 120 126 93 160 64 1 412208200063
225 20 25 90 140 103 160 70 1 412208225020
25 25 90 140 103 160 70 1 412208225025
32 25 105 140 103 160 70 1 412208225032
40 25 120 140 103 160 72 1 412208225040
50 30 120 140 105 160 72 1 412208225050
63 30 120 140 105 160 64 1 412208225063
250 20 25 90 151 138 160 70 1 412208250020
25 25 90 151 138 160 70 1 412208250025
32 30 105 151 140 160 70 1 412208250032
40 30 120 151 140 160 72 1 412208250040
50 30 120 151 140 160 72 1 412208250050
63 30 120 151 140 160 64 1 412208250063
