Description
Specification:

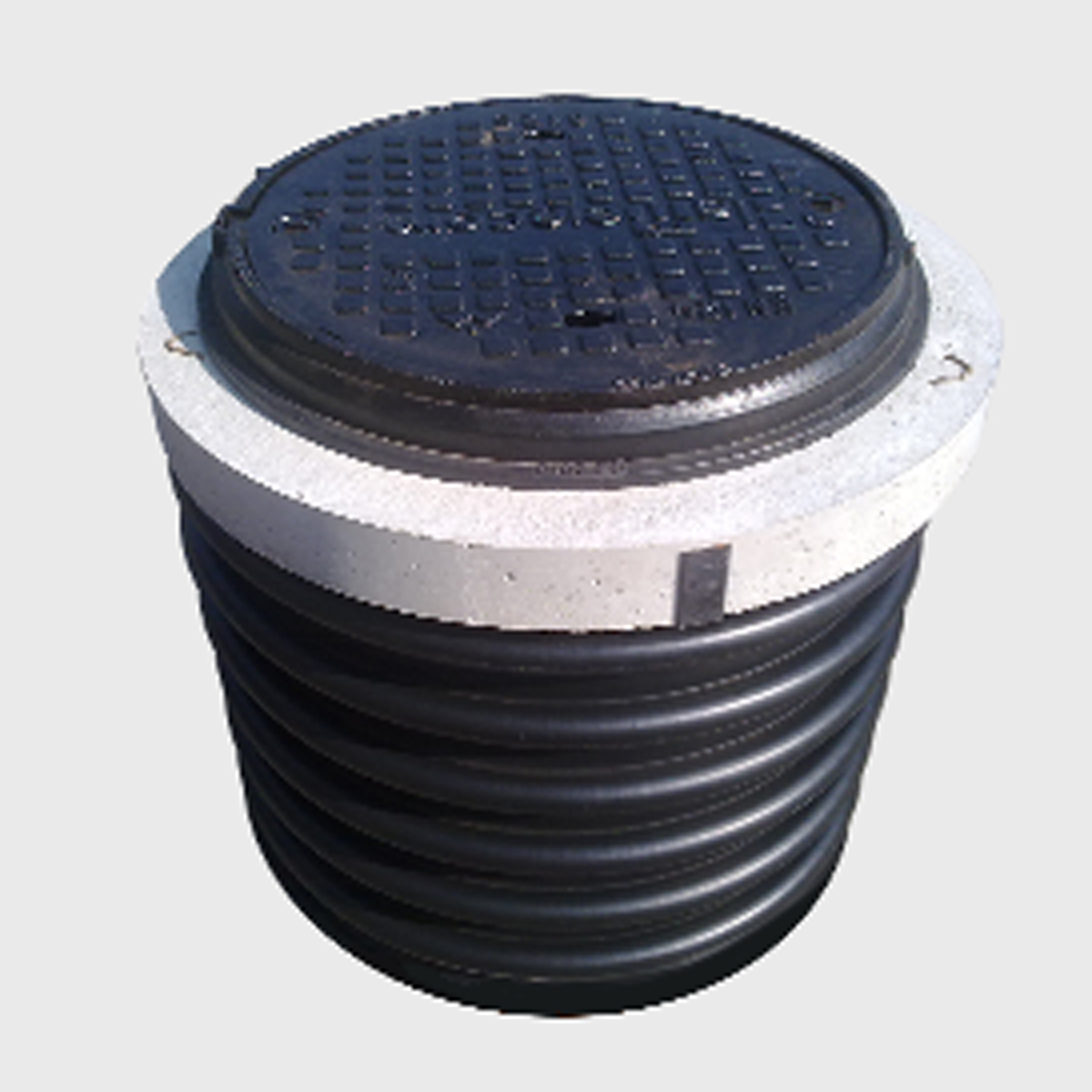

Cable connection chamber TC896/800/650 is made of polyethylene (PE100). Chamber is equipped with horizontal reinforcement ribs to secure ring stiffness SN4 and stabilisation of the chamber in soil. According to EN124, chamber is meant for use with:
- B125 cast iron manhole cover: sidewalks and pedestrian zones and similar areas, parking areas or parking area pavements;
- A15 PE cover: pedestrian and cycling zones.
The chamber cannot be used under carriageways.
Dimensions:
- Outer diameter — 896 m
- Inner diameter —800 mm
- Height — 650 mm (can be made any height on demand)
- PE bottom (thickness 8 mm) 1000 x 1000 mm
Accessories:
- Concrete ring;
- Cast iron cover 12.5 t (B class);
- Metal fixings and bolts (3 pcs).
Application area:
- Telecommunication networks;
- Optical cable lines;
- Electro cable lines;
- Railroad signalisation;
- Street lighting.
System advantages:
- Large inside diameter (ID800) gives large work space;
- Horizontal ribs stabilize the chamber in soil and increases mechanical strength;
- Easy transportation — no need of crane on construction site;
- Fast creation of connection holes from inside (crown-drilling);
- Bright work space thanks to yellow colour of inside surface;
- High resistance to corrosion and chemical substances;
- Long service life (>50 years);
- Ring stiffness SN4.
