Description
PE100, SDR 11, PN16-S5

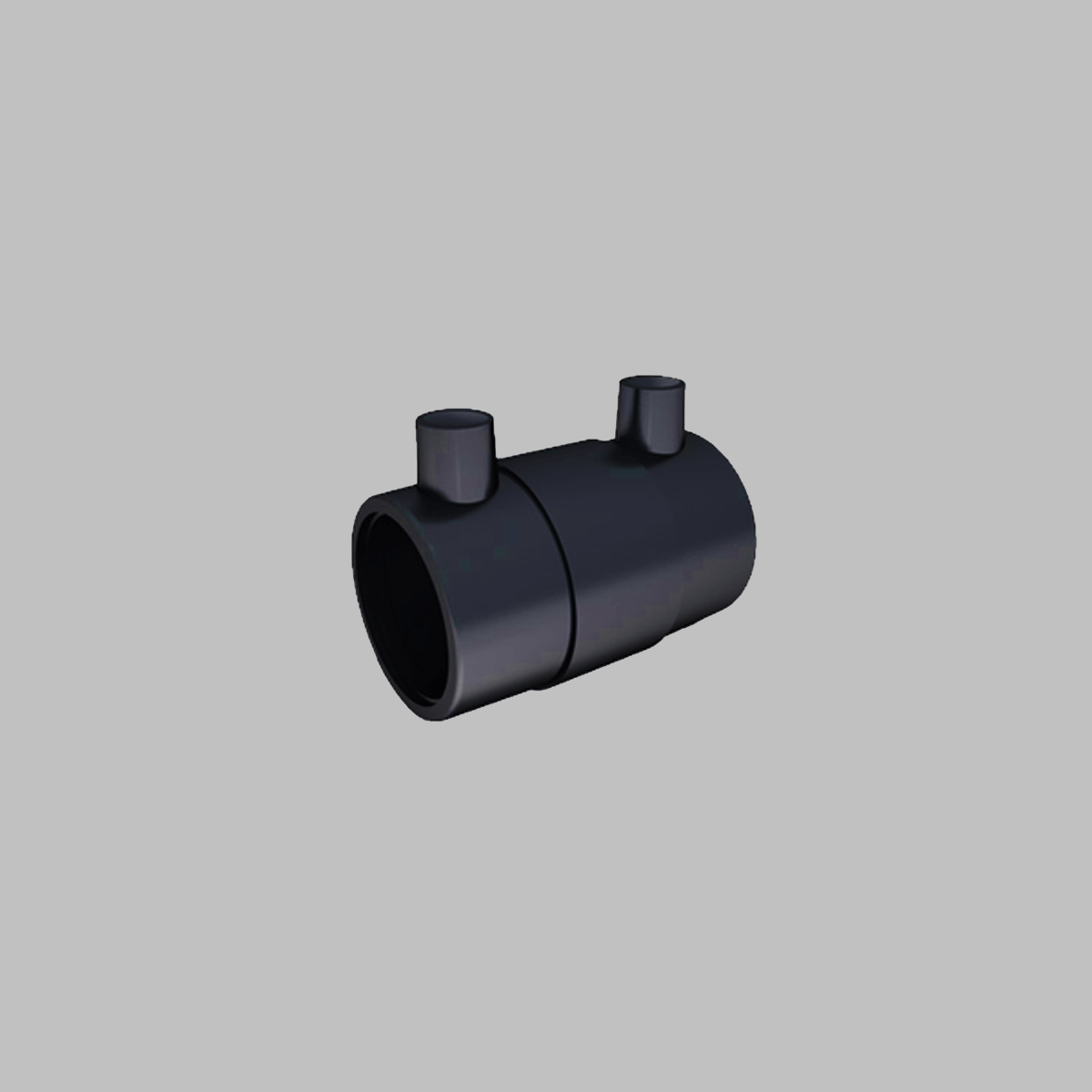

The electrofusion fittings are produced from polyethylene (PE), and the construction of those contain one or several intergated heating elements, which ensure transformation of electricity into the heat of fusion. The result of applying electrofusion fittings is solid and safe joint of pipe and any other elements belonging to the pipeline system. Electrofusion joint features excellent pressure resistance and tightness. Pressure resistance of the whole range is PN16.
|
dn [mm]
|
de [mm]
|
L [mm]
|
f [mm]
|
a [mm]
|
Z [mm]
|
Pack [pcs]
|
PN-S
|
Code
|
|---|---|---|---|---|---|---|---|---|
| 20 | 32 | 33 | 31 | 10 | 70 | 1 | PN25-S5 | 4122010200 |
| 25 | 37 | 33 | 19 | 10 | 70 | 1 | PN25-S5 | 4122010250 |
| 32 | 47 | 37 | 23 | 10 | 80 | 1 | PN25-S5 | 4122010320 |
| 40 | 56 | 44 | 26 | 12 | 90 | 1 | PN25-S5 | 4122010400 |
| 50 | 67 | 49 | 29 | 13 | 100 | 1 | PN25-S5 | 4122010500 |
| 63 | 82 | 54 | 28 | 13 | 111 | 1 | PN25-S5 | 4122010630 |
| 75 | 99 | 60 | 36 | 14 | 120 | 1 | PN25-S5 | 4122010750 |
| 90 | 116 | 65 | 37 | 14 | 130 | 1 | PN25-S5 | 4122010900 |
| 110 | 145 | 70 | 36 | 18 | 140 | 1 | PN25-S5 | 4122011100 |
| 125 | 163 | 76 | 39 | 18 | 151 | 1 | PN25-S5 | 4122011250 |
| 140 | 183 | 81 | 48 | 18 | 161 | 1 | PN25-S5 | 4122011400 |
| 160 | 207 | 86 | 55 | 19 | 172 | 1 | PN25-S5 | 4122011600 |
| 180 | 228 | 97 | 56 | 23 | 193 | 1 | PN25-S5 | 4122011800 |
| 200 | 252 | 101 | 61 | 22 | 203 | 1 | PN25-S5 | 4122012000 |
| 225 | 276 | 112 | 67 | 22 | 223 | 1 | PN25-S5 | 4122012250 |
| 250 | 312 | 122 | 60 | 30 | 244 | 1 | PN25-S5 | 4122012500 |
| 280 | 341 | 133 | 55 | 38 | 265 | 1 | PN16-S5 | 4122012800 |
| 315 | 392 | 142 | 70 | 35 | 284 | 1 | PN25-S5 | 4122013150 |
| 355 | 430 | 156 | 60 | 45 | 312 | 1 | PN16-S5 | 4122013550 |
| 400 | 461 | 170 | 60 | 41 | 340 | 1 | PN16-S8 | 4122014000 |
