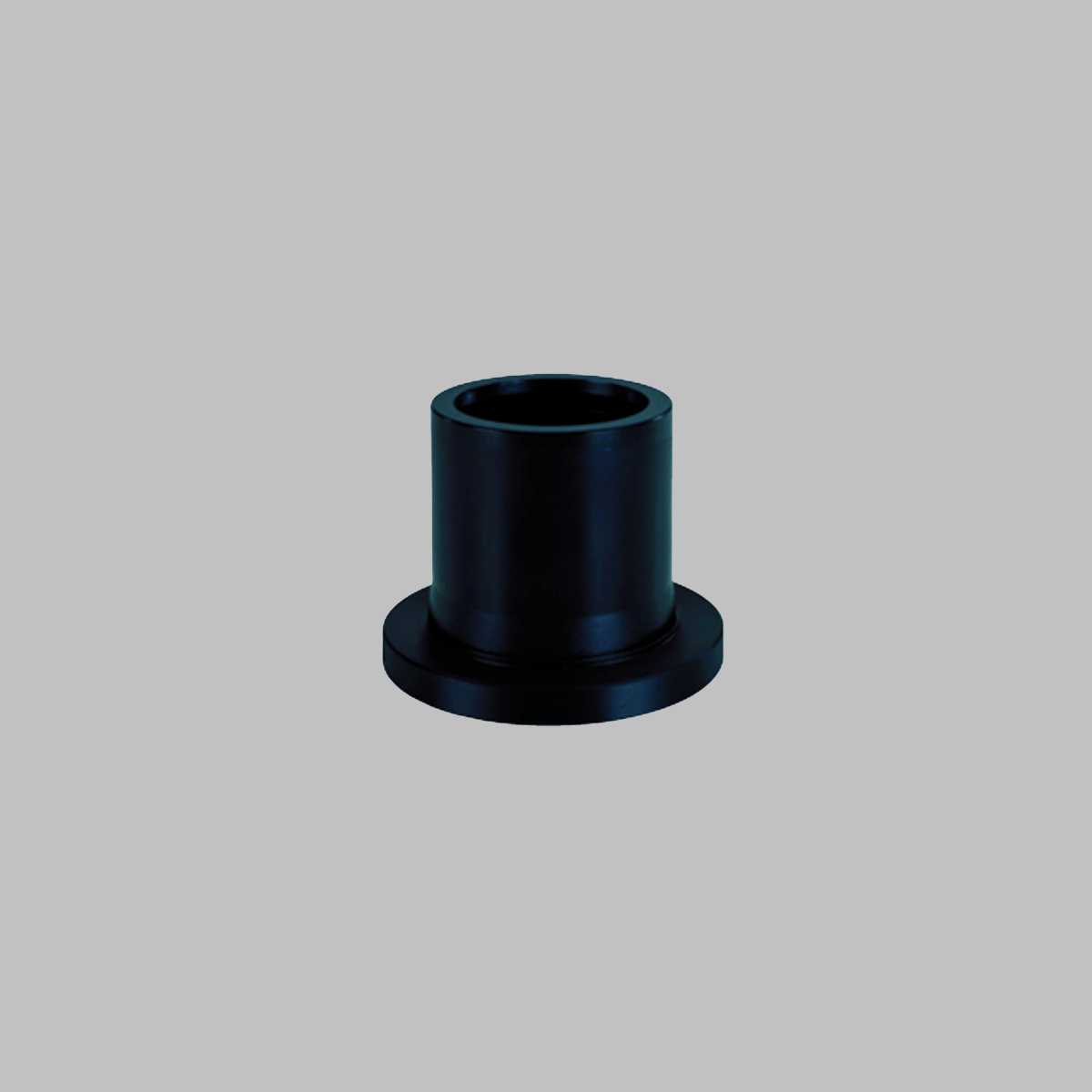

Description
PE 100
|
dn [mm]
|
h, [mm]
|
h1, [mm]
|
Z, [mm]
|
d1 [mm]
|
C [mm]
|
Pack [pcs]
|
Code
|
|||
|---|---|---|---|---|---|---|---|---|---|---|
| SDR 17 PN 10-S8 | SDR 11 PN 16-S5 | SDR 17 PN 10-S8 | SDR 11 PN 16-S5 | SDR 17 PN 10-S8 | SDR 11 PN 16-S5 | |||||
| 63 | 66 | 64 | 14 | 14 | 98 | 99 | 75 | 102 | 1 | 412307063(0/1) |
| 75 | 74 | 71 | 16 | 16 | 116 | 111 | 89 | 122 | 1 | 412307075(0/1) |
| 90 | 80 | 82 | 17 | 17 | 117 | 117 | 105 | 138 | 1 | 412307090(0/1) |
| 110 | 84 | 83 | 18 | 18 | 127 | 124 | 125 | 158 | 1 | 412307110(0/1) |
| 125 | 94 | 105 | 18 | 25 | 131 | 158 | 132 | 158 | 1 | 412307125(0/1) |
| 140 | 105 | 108 | 18 | 25 | 154 | 156 | 155 | 188 | 1 | 412307140(0/1) |
| 160 | 110 | 106 | 18 | 30 | 156 | 159 | 175 | 212 | 1 | 412307160(0/1) |
| 180 | 118 | 125 | 20 | 30 | 169 | 176 | 180 | 212 | 1 | 412307180(0/1) |
| 200 | 116 | 112 | 24 | 32 | 181 | 182 | 232 | 268 | 1 | 412307200(0/1) |
| 225 | 125 | 129 | 24 | 32 | 190 | 196 | 235 | 268 | 1 | 412307225(0/1) |
| 250 | 134 | 133 | 25 | 35 | 205 | 205 | 285 | 320 | 1 | 412307250(0/1) |
| 280 | 144 | 142 | 26 | 35 | 200 | 205 | 291 | 320 | 1 | 412307280(0/1) |
| 315 | 202 | 209 | 25 | 35 | 267 | 275 | 335 | 370 | 1 | 412307315(0/1) |
| 400 | 220 | 220 | 38 | 49 | 298 | 309 | 427 | 482 | 1 | 412307400(0/1) |
