Description
PE100-RC type pipe system is characterised by:
- Easy to load, transport, and install, increased resistance to mechanical damages;
- Easy connection of pipes by using wide range of fittings;
- Reuse of the trench allows for shorter installation time and lower costs;
- May be used in open cut (trenchless method);
- Service life >100 years at 20 oC (HESSEL, Ingenieurtechnik GmbH; ISO 4427; 4437).
Advantages of PE100-RC:
- Environmental stress crack resistance during continuos exploitation;
- Increased resistance to local deformation;
- Increased resistance to mechanical damages;
- Creased resistance to tension;
- Low resistance to flow;
- Chemical and biological inertness;
- Material neutral to the environment: polyethylene is 100% recyclable and reusable.

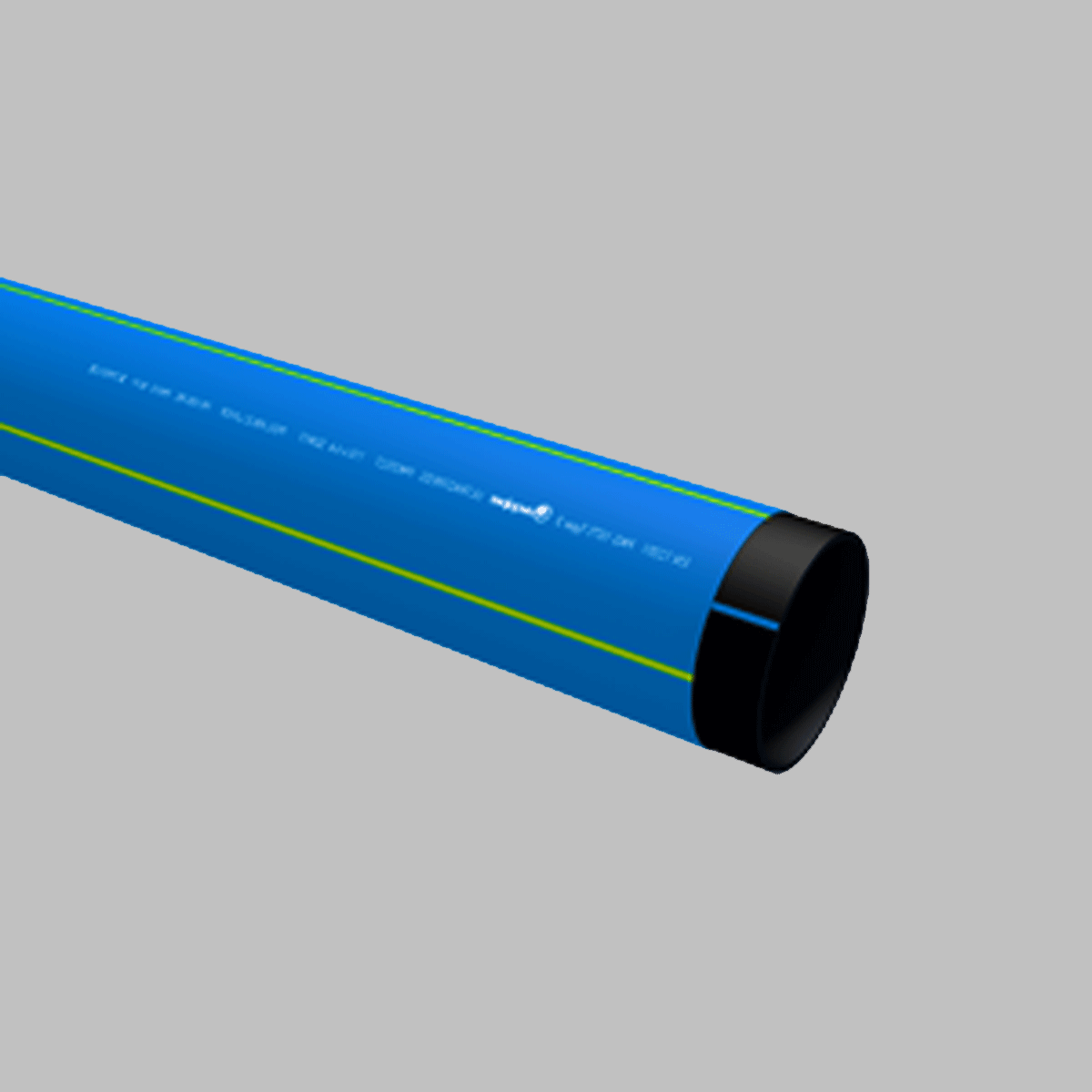

SDR 11, PE100-RC/PP, pressure class PN 16
| DN/OD [mm] | e [mm] | ID [mm] | L [m] | Code |
|---|---|---|---|---|
| 20 | 2 | 16 | 100/200 | 4111100204(100/200) |
| 25 | 2.3 | 20.4 | 100/200 | 4111100254(100/200) |
| 32 | 3 | 26 | 100/200 | 4111100324(100/200) |
| 40 | 3.7 | 32.6 | 100/200 | 4111100404(100/200) |
| 50 | 4.6 | 40.8 | 100/200 | 4111100504(100/200) |
| 63 | 5.8 | 51.4 | 100 | 4111100634100 |
| 75 | 6.8 | 61.4 | 12/100 | 4111100754(012/100) |
| 90 | 8.2 | 73.6 | 12/50/100 | 4111100904(012/050/100) |
| 110 | 10 | 90 | 12/50/100 | 4111101104(012/050/100) |
| 125 | 11.4 | 102.2 | 12 | 4111101254012 |
| 140 | 12.7 | 114.6 | 12 | 4111101404012 |
| 160 | 14.6 | 130.8 | 12 | 4111101604012 |
| 180 | 16.4 | 147.2 | 12 | 4111101804012 |
| 200 | 18.2 | 163.6 | 12 | 4111102004012 |
| 225 | 20.5 | 184 | 12 | 4111102254012 |
| 250 | 22.7 | 204.6 | 12 | 4111102504012 |
| 280 | 25.4 | 229.2 | 12 | 4111102804012 |
| 315 | 28.6 | 257.8 | 12 | 4111103154012 |
| 355 | 32.2 | 290.6 | 12 | 4111103554012 |
| 400 | 36.3 | 327.4 | 12 | 4111104004012 |
| 450 | 40.9 | 368.2 | 12 | 4111104504012 |
| 500 | 45.4 | 409.2 | 12 | 4111105004012 |
| 560 | 50.8 | 458.4 | 12 | 4111105604012 |
| 630 | 57.2 | 515.6 | 12 | 4111106304012 |
