Description
PE100-RC type pipe system is characterised by:
- Easy to load, transport, and install, increased resistance to mechanical damages;
- Easy connection of pipes by using wide range of fittings;
- Reuse of the trench allows for shorter installation time and lower costs;
- May be used in open cut (trenchless method);
- Service life >100 years at 20 oC (HESSEL, Ingenieurtechnik GmbH; ISO 4427; 4437).
Advantages of PE100-RC:
- Environmental stress crack resistance during continuos exploitation;
- Increased resistance to local deformation;
- Increased resistance to mechanical damages;
- Creased resistance to tension;
- Low resistance to flow;
- Chemical and biological inertness;
- Material neutral to the environment: polyethylene is 100% recyclable and reusable.

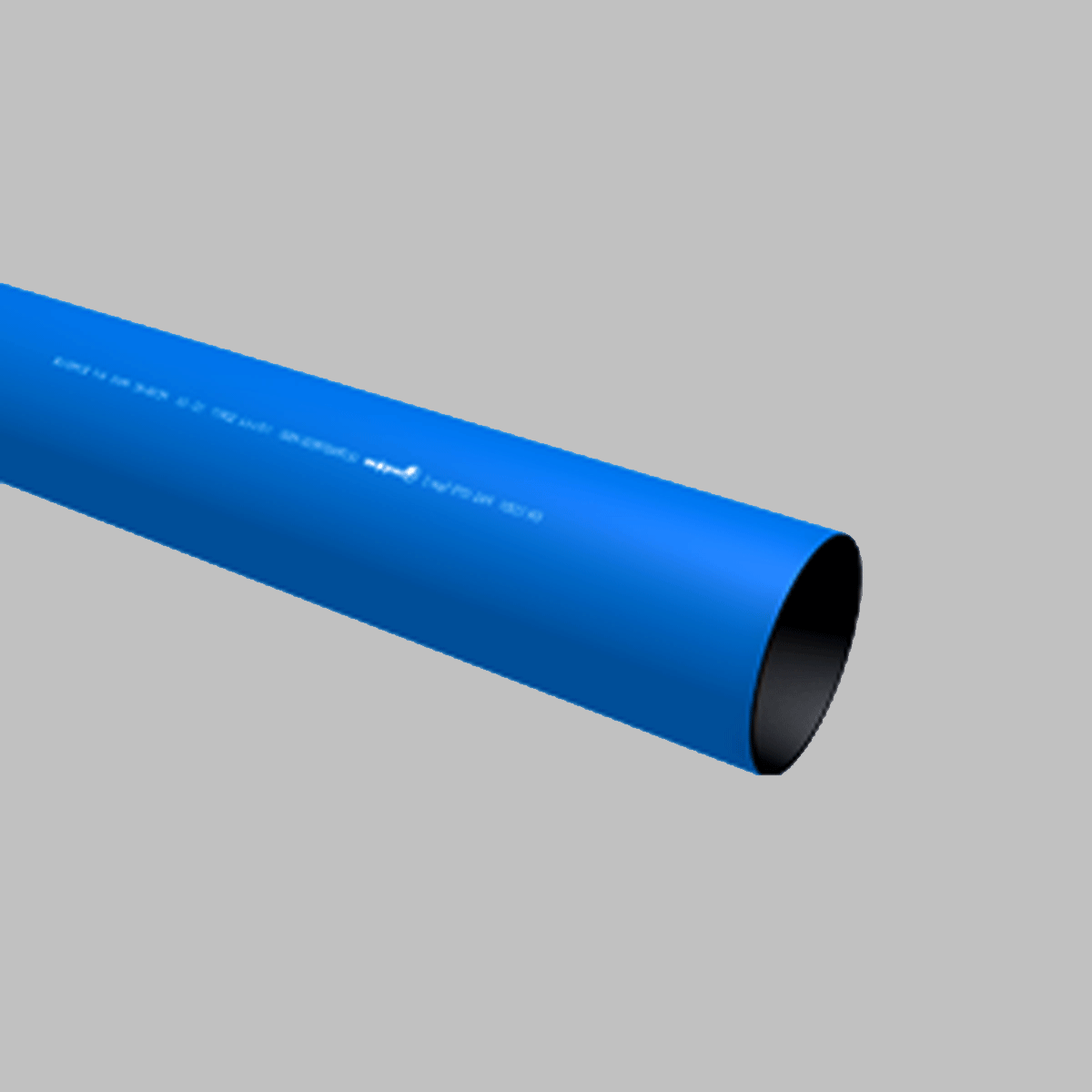

SDR 13.6, PE100-RC, pressure class PN 12.5
| DN/OD [mm] | e [mm] | ID [mm] | L [m] | Code |
|---|---|---|---|---|
| 20 | 1.8 | 16.4 | 100/200 | 4111360204(100/200) |
| 25 | 2 | 21 | 100/200 | 4111360254(100/200) |
| 32 | 2.4 | 27.2 | 100/200 | 4111360324(100/200) |
| 40 | 3 | 34 | 100/200 | 4111360404(100/200) |
| 50 | 3.7 | 42.6 | 100/200 | 4111360504(100/200) |
| 63 | 4.7 | 53.6 | 100 | 4111360634100 |
| 75 | 5.6 | 63.8 | 12/100 | 4111360754(012/100) |
| 90 | 6.7 | 76.6 | 12/50/100 | 4111360904(012/050/100) |
| 110 | 8.1 | 93.8 | 12/50/100 | 4111361104(012/050/100) |
| 125 | 9.2 | 106.6 | 12 | 4111361254012 |
| 140 | 10.3 | 119.4 | 12 | 4111361404012 |
| 160 | 11.8 | 136.4 | 12 | 4111361604012 |
| 180 | 13.3 | 153.4 | 12 | 4111361804012 |
| 200 | 14.7 | 170.6 | 12 | 4111362004012 |
| 225 | 16.6 | 191.8 | 12 | 4111362254012 |
| 250 | 18.4 | 213.2 | 12 | 4111362504012 |
| 280 | 20.6 | 238.8 | 12 | 4111362804012 |
| 315 | 23.2 | 268.6 | 12 | 4111363154012 |
| 355 | 26.1 | 302.8 | 12 | 4111363554012 |
| 400 | 29.4 | 341.2 | 12 | 4111364004012 |
| 450 | 33.1 | 383.8 | 12 | 4111364504012 |
| 500 | 36.8 | 426.4 | 12 | 4111365004012 |
| 560 | 41.2 | 477.6 | 12 | 4111365604012 |
| 630 | 46.3 | 537.4 | 12 | 4111366304012 |
