Description
PE100-RC type pipe system is characterised by:
- Easy to load, transport, and install, increased resistance to mechanical damages;
- Easy connection of pipes by using wide range of fittings;
- Reuse of the trench allows for shorter installation time and lower costs;
- May be used in open cut (trenchless method);
- Service life >100 years at 20 oC (HESSEL, Ingenieurtechnik GmbH; ISO 4427; 4437).
Advantages of PE100-RC:
- Environmental stress crack resistance during continuos exploitation;
- Increased resistance to local deformation;
- Increased resistance to mechanical damages;
- Creased resistance to tension;
- Low resistance to flow;
- Chemical and biological inertness;
- Material neutral to the environment: polyethylene is 100% recyclable and reusable.

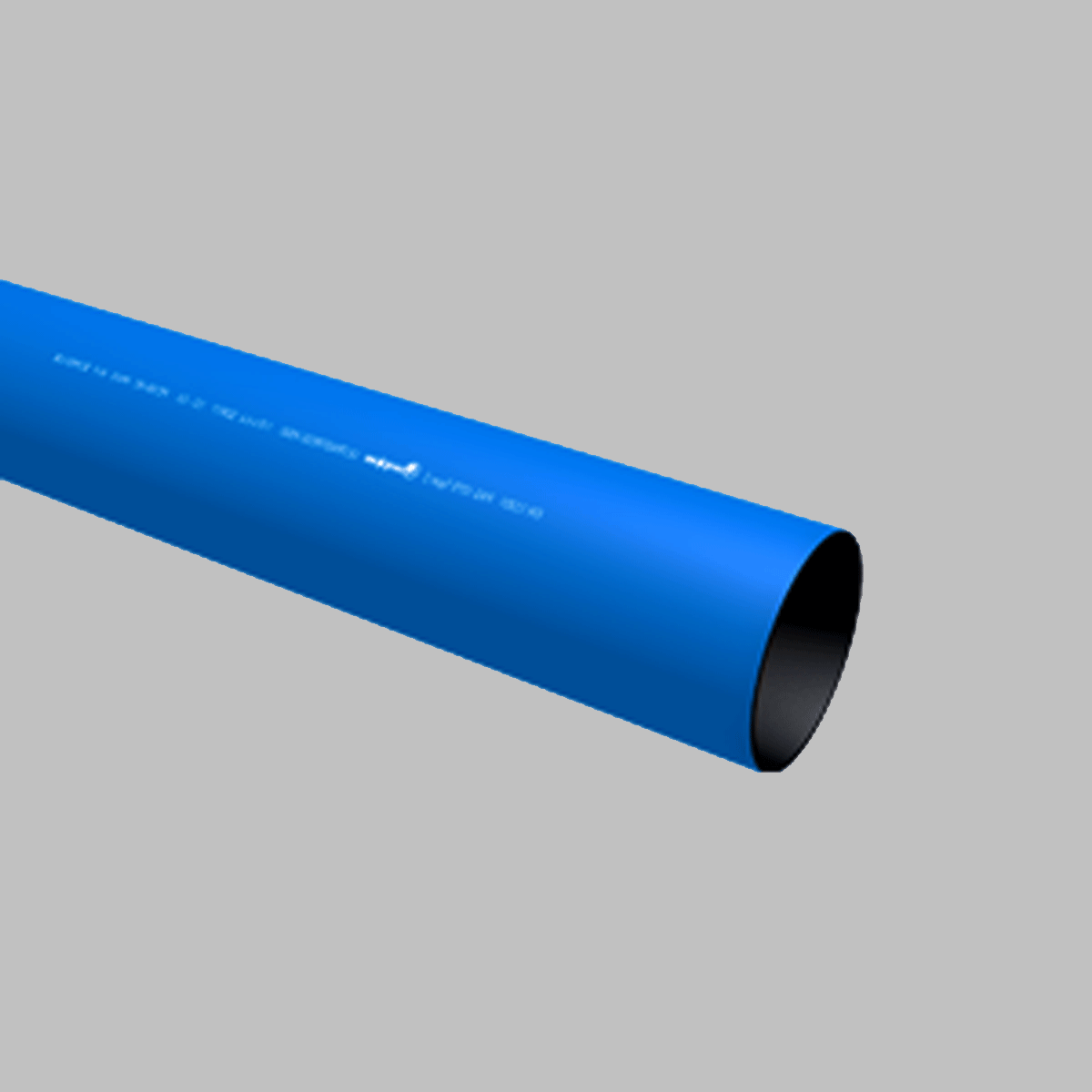

SDR 17, PE100-RC, pressure class PN 10
| DN/OD [mm] | e [mm] | ID [mm] | L [m] | Code |
|---|---|---|---|---|
| 25 | 1.8 | 21.4 | 100/200 | 4111700254(100/200) |
| 32 | 2 | 28 | 100/200 | 4111700324(100/200) |
| 40 | 2.4 | 35.2 | 100/200 | 4111700404(100/200) |
| 50 | 3 | 44 | 100/200 | 4111700504(100/200) |
| 63 | 3.8 | 55.4 | 100 | 4111700634100 |
| 75 | 4.5 | 66 | 12/100 | 4111700754(012/100) |
| 90 | 5.4 | 79.2 | 12/50/100 | 4111700904(012/050/100) |
| 110 | 6.6 | 96.8 | 12/50/100 | 4111701104(012/050/100) |
| 125 | 7.4 | 110.2 | 12 | 4111701254012 |
| 140 | 8.3 | 123.4 | 12 | 4111701404012 |
| 160 | 9.5 | 141 | 12 | 4111701604012 |
| 180 | 10.7 | 158.6 | 12 | 4111701804012 |
| 200 | 11.9 | 176.2 | 12 | 4111702004012 |
| 225 | 13.4 | 198.2 | 12 | 4111702254012 |
| 250 | 14.8 | 220.4 | 12 | 4111702504012 |
| 280 | 16.6 | 246.8 | 12 | 4111702804012 |
| 315 | 18.7 | 277.6 | 12 | 4111703154012 |
| 355 | 21.1 | 312.8 | 12 | 4111703554012 |
| 400 | 23.7 | 352.6 | 12 | 4111704004012 |
| 450 | 26.7 | 396.6 | 12 | 4111704504012 |
| 500 | 29.7 | 440.6 | 12 | 4111705004012 |
| 560 | 33.2 | 493.6 | 12 | 4111705604012 |
| 630 | 37.4 | 555.2 | 12 | 4111706304012 |
