Description

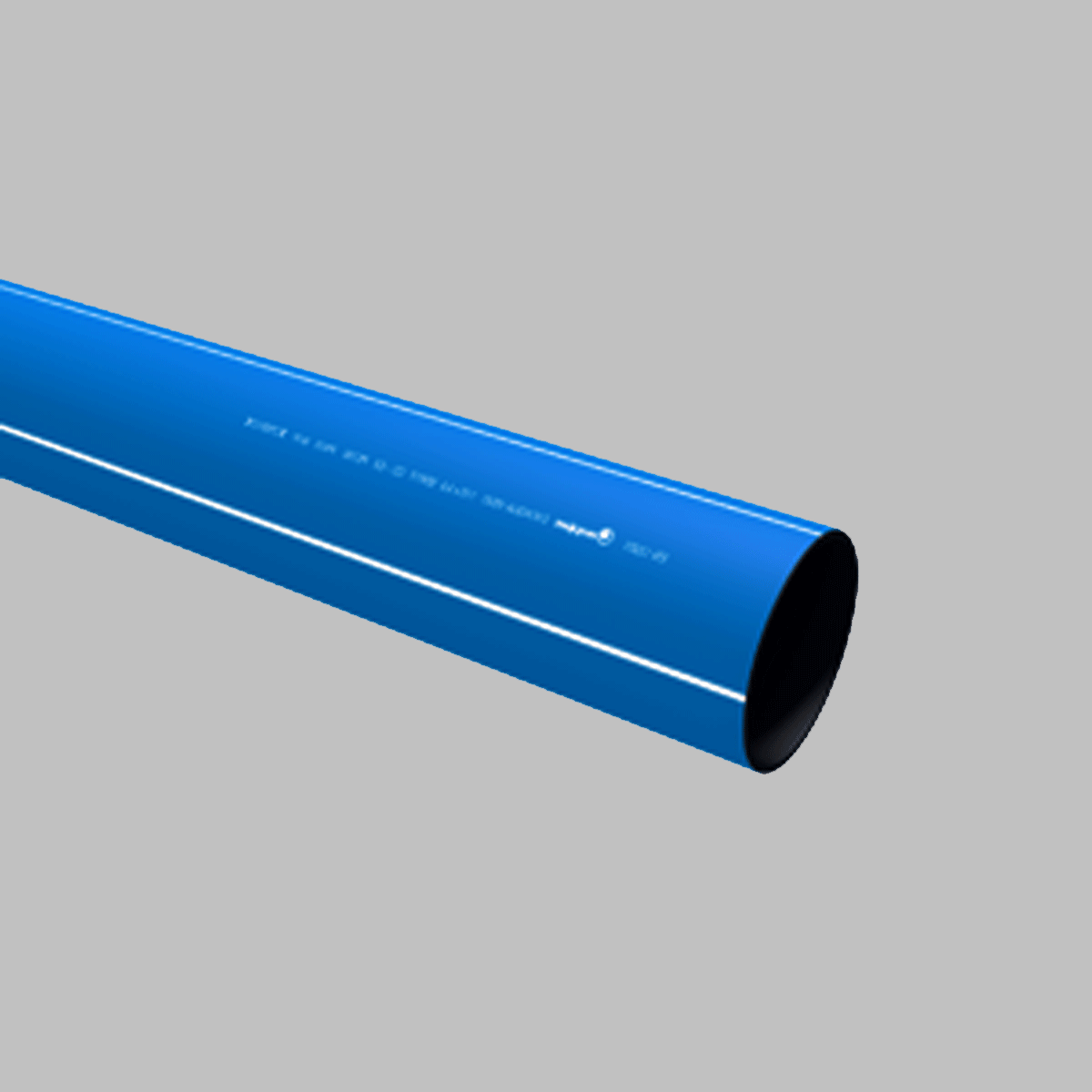

EVOAQUA pressure piping system is characterised by:
- Excellent long-term durability properties (up to 50 years in service);
- High resistance to corrosion;
- Very low resistance to flow;
- Chemically and biologically inert material;
- Comprehensive range of joints and adapter fittings;
- Environmentally-friendly material PE is 100% recyclable.
PE100, pressure class PN10
|
DN/OD [mm]
|
e [mm]
|
ID [mm]
|
L [m]
|
Code
|
|---|---|---|---|---|
| 25 | 1.8 | 21.4 | 100/200 | 4111700253(100/200) |
| 32 | 2 | 28 | 100/200 | 4111700323(100/200) |
| 40 | 2.4 | 35.2 | 100/200 | 4111700403(100/200) |
| 50 | 3 | 44 | 100/200 | 4111700503(100/200) |
| 63 | 3.8 | 55.4 | 100 | 4111700633100 |
| 75 | 4.5 | 66 | 12/100 | 4111700753(012/100) |
| 90 | 5.4 | 79.2 | 12/50/100 | 4111700903(012/050/100) |
| 110 | 6.6 | 96.8 | 12/50/100 | 4111701103(012/050/100) |
| 125 | 7.4 | 110.2 | 12 | 4111701253012 |
| 140 | 8.3 | 123.4 | 12 | 4111701403012 |
| 160 | 9.5 | 141 | 12 | 4111701603012 |
| 180 | 10.7 | 158.6 | 12 | 4111701803012 |
| 200 | 11.9 | 176.2 | 12 | 4111702003012 |
| 225 | 13.4 | 198.2 | 12 | 4111702253012 |
| 250 | 14.8 | 220.4 | 12 | 4111702503012 |
| 280 | 16.6 | 246.8 | 12 | 4111702803012 |
| 315 | 18.7 | 277.6 | 12 | 4111703153012 |
| 355 | 21.1 | 312.8 | 12 | 4111703553012 |
| 400 | 23.7 | 352.6 | 12 | 4111704003012 |
| 450 | 26.7 | 396.6 | 12 | 4111704503012 |
| 500 | 29.7 | 440.6 | 12 | 4111705003012 |
| 560 | 33.2 | 493.6 | 12 | 4111705603012 |
| 630 | 37.4 | 555.2 | 12 | 4111706303012 |
