Description

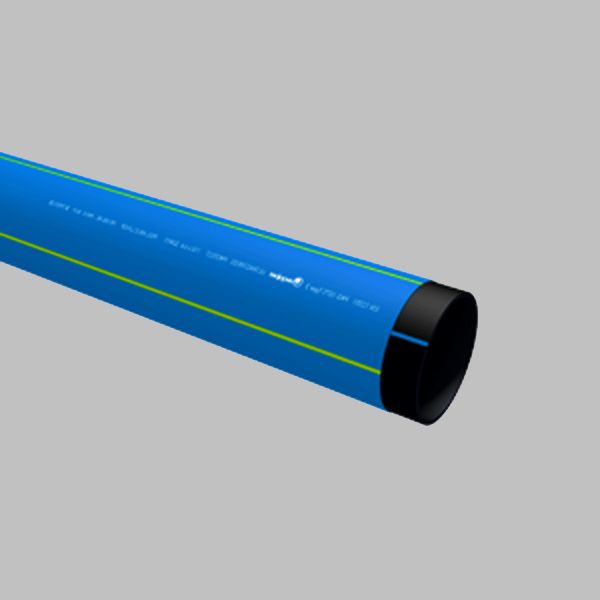

SDR 21 PE100 SCGR.
pressure class PN 8
|
DN/OD [mm]
|
e [mm]
|
ID [mm]
|
L [m]
|
Code
|
|---|---|---|---|---|
| 40 | 2 | 36 | 100/200 | 4112100404(100/200) |
| 50 | 2.4 | 45.2 | 100/200 | 4112100504(100/200) |
| 63 | 3 | 57 | 100 | 4112100634100 |
| 75 | 3.6 | 67.8 | 12/100 | 4112100754(012/100) |
| 90 | 4.3 | 81.4 | 12/50/100 | 4112100904(012/050/100) |
| 110 | 5.3 | 99.4 | 12/50/100 | 4112101104(012/050/100) |
| 125 | 6 | 113 | 12 | 4112101254012 |
| 140 | 6.7 | 126.6 | 12 | 4112101404012 |
| 160 | 7.7 | 144.6 | 12 | 4112101604012 |
| 180 | 8.6 | 162.8 | 12 | 4112101804012 |
| 200 | 9.6 | 180.8 | 12 | 4112102004012 |
| 225 | 10.8 | 203.4 | 12 | 4112102254012 |
| 250 | 11.9 | 226.2 | 12 | 4112102504012 |
| 280 | 13.4 | 253.2 | 12 | 4112102804012 |
| 315 | 15 | 285 | 12 | 4112103154012 |
| 355 | 16.9 | 321.2 | 12 | 4112103554012 |
| 400 | 19.1 | 361.8 | 12 | 4112104004012 |
| 450 | 21.5 | 407 | 12 | 4112104504012 |
| 500 | 23.9 | 452.2 | 12 | 4112105004012 |
| 560 | 26.7 | 506.6 | 12 | 4112105604012 |
| 630 | 30 | 570 | 12 | 4112106304012 |
