Description
PE100-RC type pipe system is characterised by:
- Easy to load, transport, and install, increased resistance to mechanical damages;
- Easy connection of pipes by using wide range of fittings;
- Reuse of the trench allows for shorter installation time and lower costs;
- May be used in open cut (trenchless method);
- Service life >100 years at 20 oC (HESSEL, Ingenieurtechnik GmbH; ISO 4427; 4437).
Advantages of PE100-RC:
- Environmental stress crack resistance during continuos exploitation;
- Increased resistance to local deformation;
- Increased resistance to mechanical damages;
- Creased resistance to tension;
- Low resistance to flow;
- Chemical and biological inertness;
- Material neutral to the environment: polyethylene is 100% recyclable and reusable.

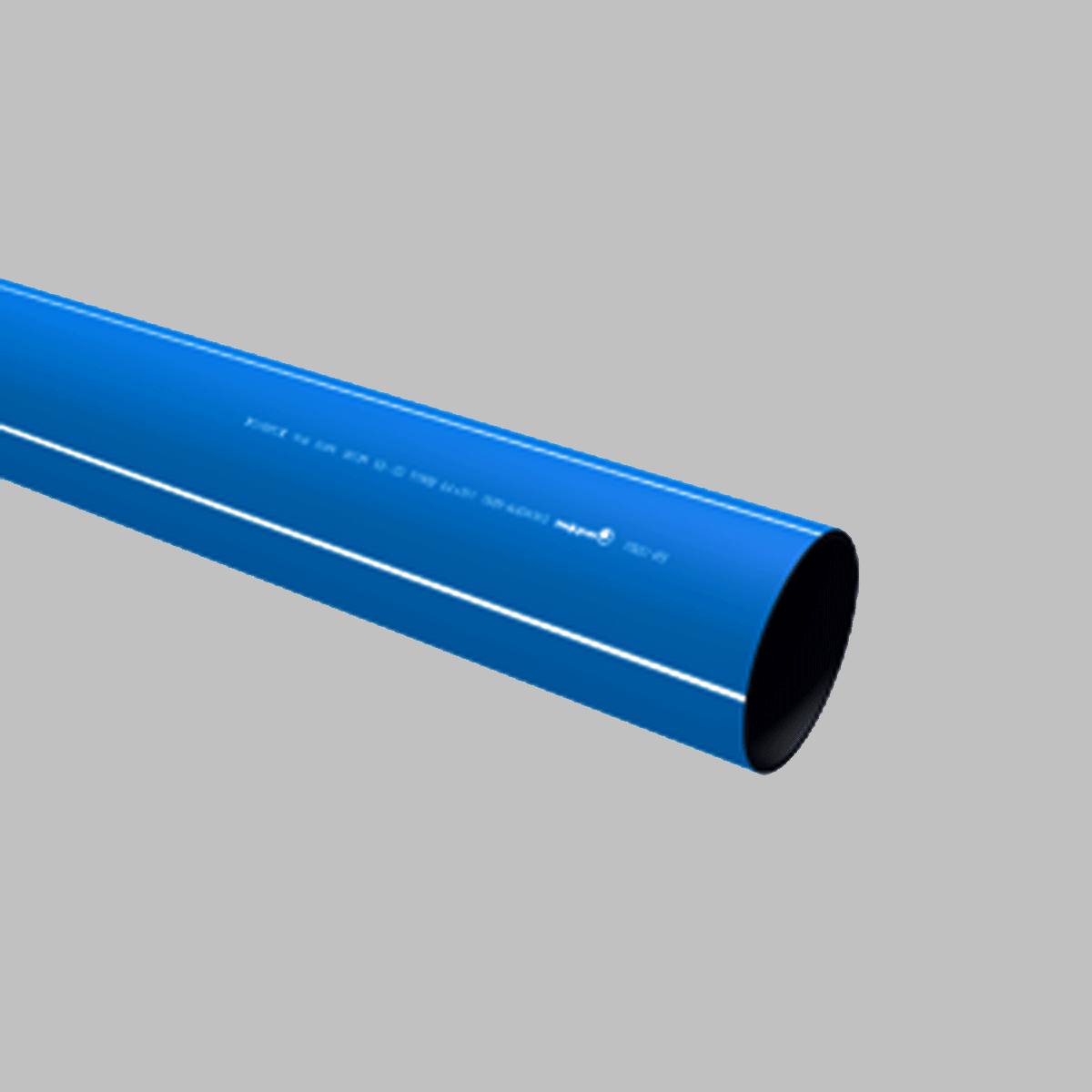

SDR 21, PE100-RC/PP, pressure class PN 8
| DN/OD [mm] | e [mm] | ID [mm] | L [m] | Code |
|---|---|---|---|---|
| 40 | 2 | 36 | 100/200 | 4112100404(100/200) |
| 50 | 2.4 | 45.2 | 100/200 | 4112100504(100/200) |
| 63 | 3 | 57 | 100 | 4112100634100 |
| 75 | 3.6 | 67.8 | 12/100 | 4112100754(012/100) |
| 90 | 4.3 | 81.4 | 12/50/100 | 4112100904(012/050/100) |
| 110 | 5.3 | 99.4 | 12/50/100 | 4112101104(012/050/100) |
| 125 | 6 | 113 | 12 | 4112101254012 |
| 140 | 6.7 | 126.6 | 12 | 4112101404012 |
| 160 | 7.7 | 144.6 | 12 | 4112101604012 |
| 180 | 8.6 | 162.8 | 12 | 4112101804012 |
| 200 | 9.6 | 180.8 | 12 | 4112102004012 |
| 225 | 10.8 | 203.4 | 12 | 4112102254012 |
| 250 | 11.9 | 226.2 | 12 | 4112102504012 |
| 280 | 13.4 | 253.2 | 12 | 4112102804012 |
| 315 | 15 | 285 | 12 | 4112103154012 |
| 355 | 16.9 | 321.2 | 12 | 4112103554012 |
| 400 | 19.1 | 361.8 | 12 | 4112104004012 |
| 450 | 21.5 | 407 | 12 | 4112104504012 |
| 500 | 23.9 | 452.2 | 12 | 4112105004012 |
| 560 | 26.7 | 506.6 | 12 | 4112105604012 |
| 630 | 30 | 570 | 12 | 4112106304012 |
