Description

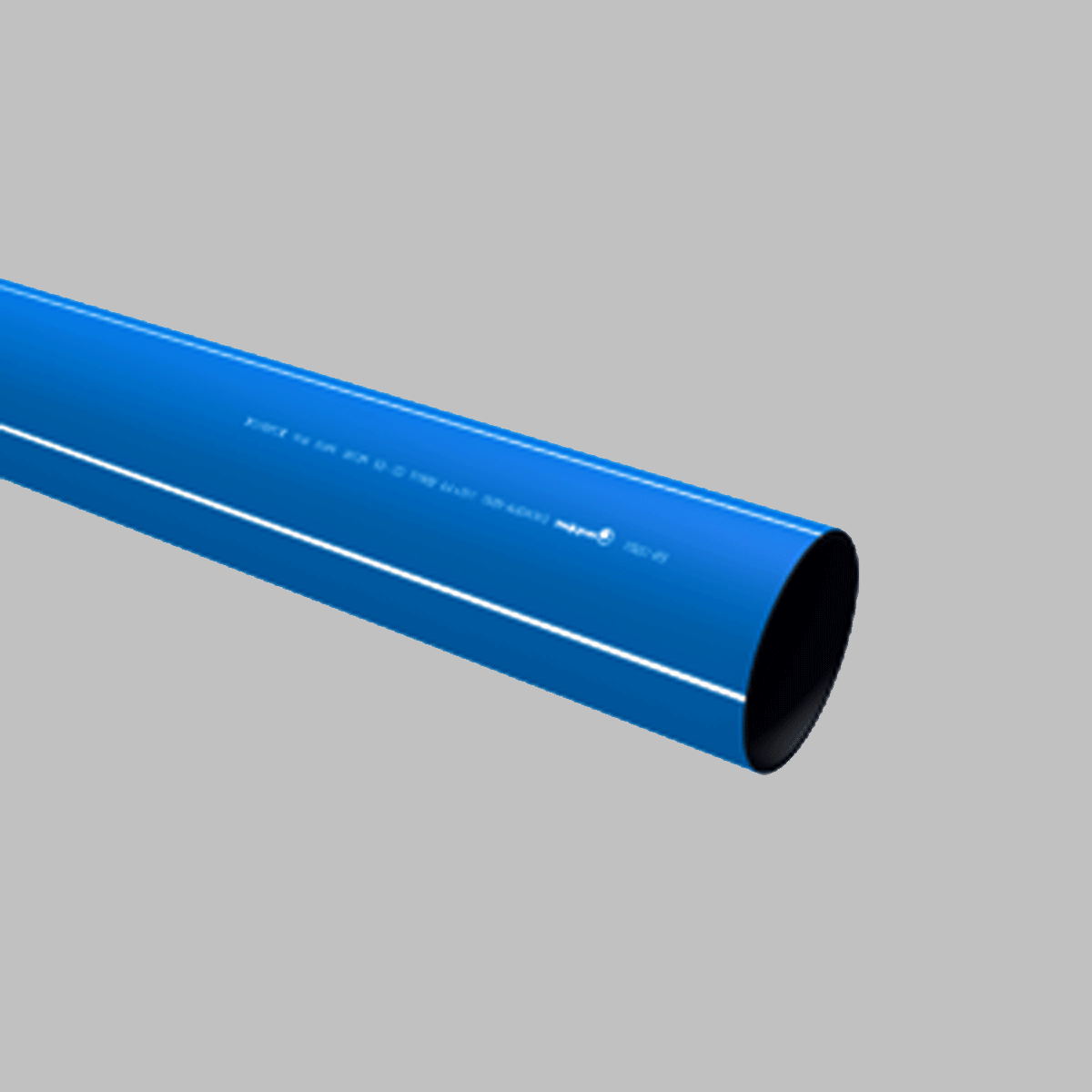

EVOAQUA pressure piping system is characterised by:
- Excellent long-term durability properties (up to 50 years in service);
- High resistance to corrosion;
- Very low resistance to flow;
- Chemically and biologically inert material;
- Comprehensive range of joints and adapter fittings;
- Environmentally-friendly material PE is 100% recyclable.
PE100, pressure class PN8
|
DN/OD [mm]
|
e [mm]
|
ID [m]
|
L [m]
|
Code
|
|---|---|---|---|---|
| 40 | 2 | 36 | 100/200 | 4112100403(100/200) |
| 50 | 2.4 | 45.2 | 100/200 | 4112100503(100/200) |
| 63 | 3 | 57 | 100 | 4112100633100 |
| 75 | 3.6 | 67.8 | 12/100 | 4112100753(012/100) |
| 90 | 4.3 | 81.4 | 12/50/100 | 4112100903(012/050/100) |
| 110 | 5.3 | 99.4 | 12/50/100 | 4112101103(012/050/100) |
| 125 | 6 | 113 | 12 | 4112101253012 |
| 140 | 6.7 | 126.6 | 12 | 4112101403012 |
| 160 | 7.7 | 144.6 | 12 | 4112101603012 |
| 180 | 8.6 | 162.8 | 12 | 4112101803012 |
| 200 | 9.6 | 180.8 | 12 | 4112102003012 |
| 225 | 10.8 | 203.4 | 12 | 4112102253012 |
| 250 | 11.9 | 226.2 | 12 | 4112102503012 |
| 280 | 13.4 | 253.2 | 12 | 4112102803012 |
| 315 | 15 | 285 | 12 | 4112103153012 |
| 355 | 16.9 | 321.2 | 12 | 4112103553012 |
| 400 | 19.1 | 361.8 | 12 | 4112104003012 |
| 450 | 21.5 | 407 | 12 | 4112104503012 |
| 500 | 23.9 | 452.2 | 12 | 4112105003012 |
| 560 | 26.7 | 506.6 | 12 | 4112105603012 |
| 630 | 30 | 570 | 12 | 4112106303012 |
