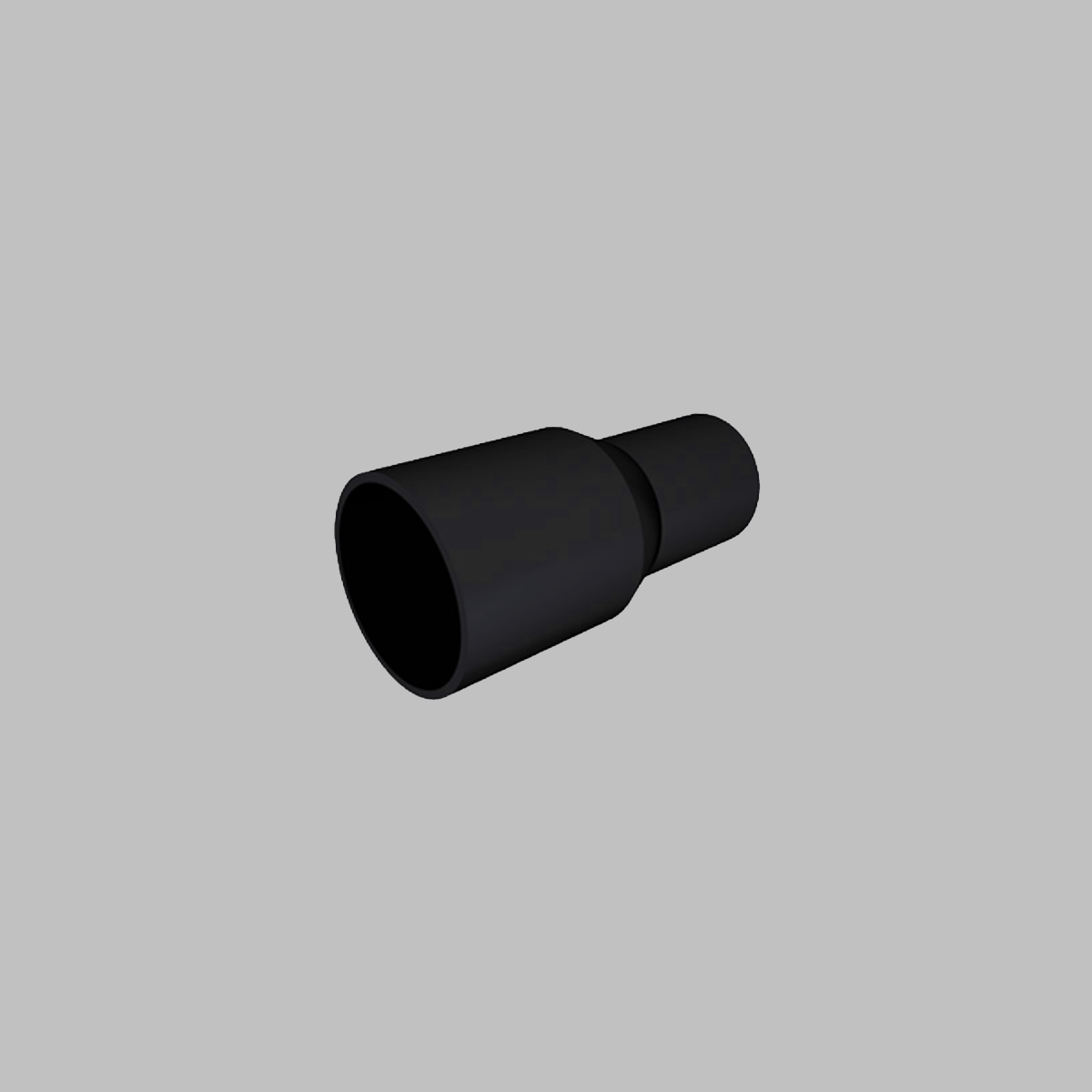

Description
PE100, SDR 17, PN 10-S8
|
dn/dn1 [mm]
|
h [mm]
|
h1 [mm]
|
Z [mm]
|
Pack [pcs]
|
Code
|
|
|---|---|---|---|---|---|---|
| 90 | 63 | 82 | 70 | 168 | 1 | 412305090063 |
| 75 | 80 | 70 | 164 | 1 | 412305090063 | |
| 110 | 63 | 85 | 69 | 188 | 1 | 412305110063 |
| 75 | 86 | 73 | 173 | 1 | 412305110075 | |
| 90 | 86 | 81 | 181 | 1 | 412305110090 | |
| 125 | 63 | 91 | 67 | 195 | 1 | 412305125063 |
| 75 | 89 | 73 | 177 | 1 | 412305125075 | |
| 90 | 95 | 82 | 191 | 1 | 412305125090 | |
| 110 | 92 | 84 | 190 | 1 | 412305125110 | |
| 140 | 90 | 94 | 82 | 208 | 1 | 412305140090 |
| 110 | 94 | 83 | 193 | 1 | 412305140110 | |
| 125 | 93 | 89 | 196 | 1 | 412305140125 | |
| 160 | 90 | 95 | 81 | 201 | 1 | 412305160090 |
| 110 | 113 | 103 | 270 | 1 | 412305160110 | |
| 125 | 101 | 91 | 206 | 1 | 412305160125 | |
| 140 | 101 | 92 | 206 | 1 | 412305160140 | |
| 180 | 125 | 107 | 88 | 220 | 1 | 412305180125 |
| 140 | 105 | 96 | 223 | 1 | 412305180140 | |
| 160 | 107 | 101 | 224 | 1 | 412305180160 | |
| 200 | 140 | 117 | 95 | 230 | 1 | 412305200140 |
| 160 | 117 | 101 | 231 | 1 | 412305200160 | |
| 180 | 117 | 109 | 236 | 1 | 412305200180 | |
| 225 | 90 | 120 | 89 | 279 | 1 | 412305225090 |
| 125 | 133 | 100 | 298 | 1 | 412305225125 | |
| 160 | 132 | 120 | 292 | 1 | 412305225160 | |
| 180 | 132 | 125 | 285 | 1 | 412305225180 | |
| 200 | 132 | 130 | 277 | 1 | 412305225200 | |
| 250 | 180 | 138 | 124 | 304 | 1 | 412305250180 |
| 200 | 138 | 130 | 301 | 1 | 412305250200 | |
| 225 | 137 | 134 | 286 | 1 | 412305250225 | |
| 315 | 225 | 172 | 138 | 389 | 1 | 412305315225 |
| 250 | 174 | 150 | 381 | 1 | 412305315250 |
