Description

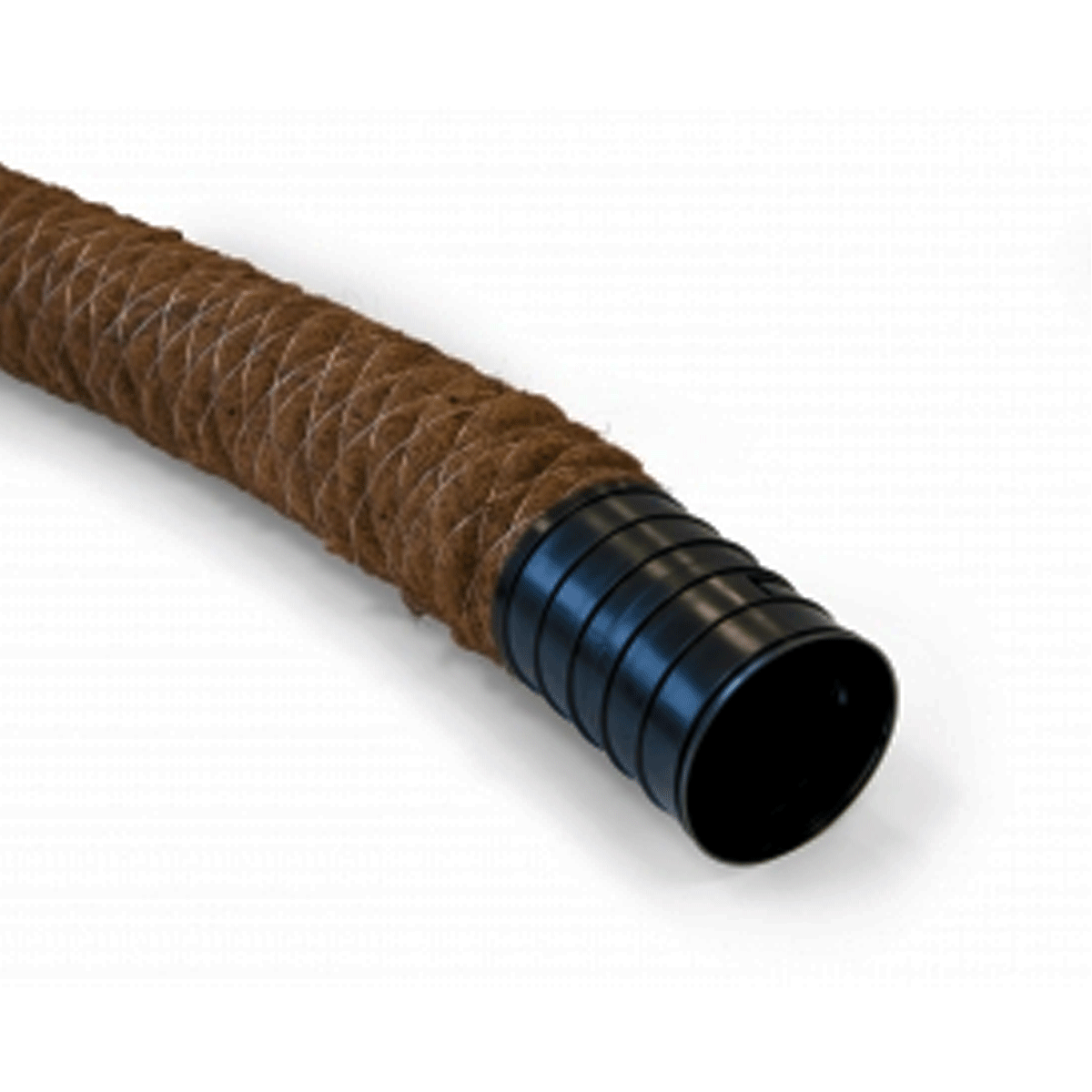

Drainage system includes corrugated single-wall pipes with cocos fibre filter made of high-density polyethylene (PEHD) and perforated at 360o. Offer for drainage system includes also wide range of connections. Pipes are available in rolls, up to 100 m. Other sizes are available to a request.
EVODRAIN pipe system is characterised by the following:
- excellent impact strength properties;
- higher resistance against UV radiation;
- excellent corrosion-resistance;
- excellent long-term strength properties (service life up to 50 years),
- chemical and biological inertness;
- easy to transport and install;
- environmentally neutral material: PE is 100% recyclable and can be used repeatedly;
- working temperature from -20o to +90o;
- assembly temperature from -10o
PEHD guarantees high compression strength, ring stiffness for single-wall pipes — SN4 (4 kN/m²). Conforms with DIN 4262-1:2009
Water permeability 50 cm2/m
|
DN/OD [mm]
|
Perforation length[mm] | Perforation width [mm] | Number of perforations between corrugations |
Package [m]
|
Code |
|---|---|---|---|---|---|
| 63 | 13,27 | 1,2 | 3 | 50/100 | 5112063360-050/-100 |
| 75 | 13,02 | 1,2 | 3 | 50/100 | 5112075360-050/-100 |
| 90 | 13,22 | 1,4 | 3 | 50/75 | 5112090360-050/-075 |
| 110 | 9,17 | 1,2 | 6 | 50 | 5112110360050 |
| 125 | 10,12 | 1,2 | 6 | 25 | 5112125360025 |
| 160 | 11,19 | 1,4 | 6 | 25 | 5112160360025 |
