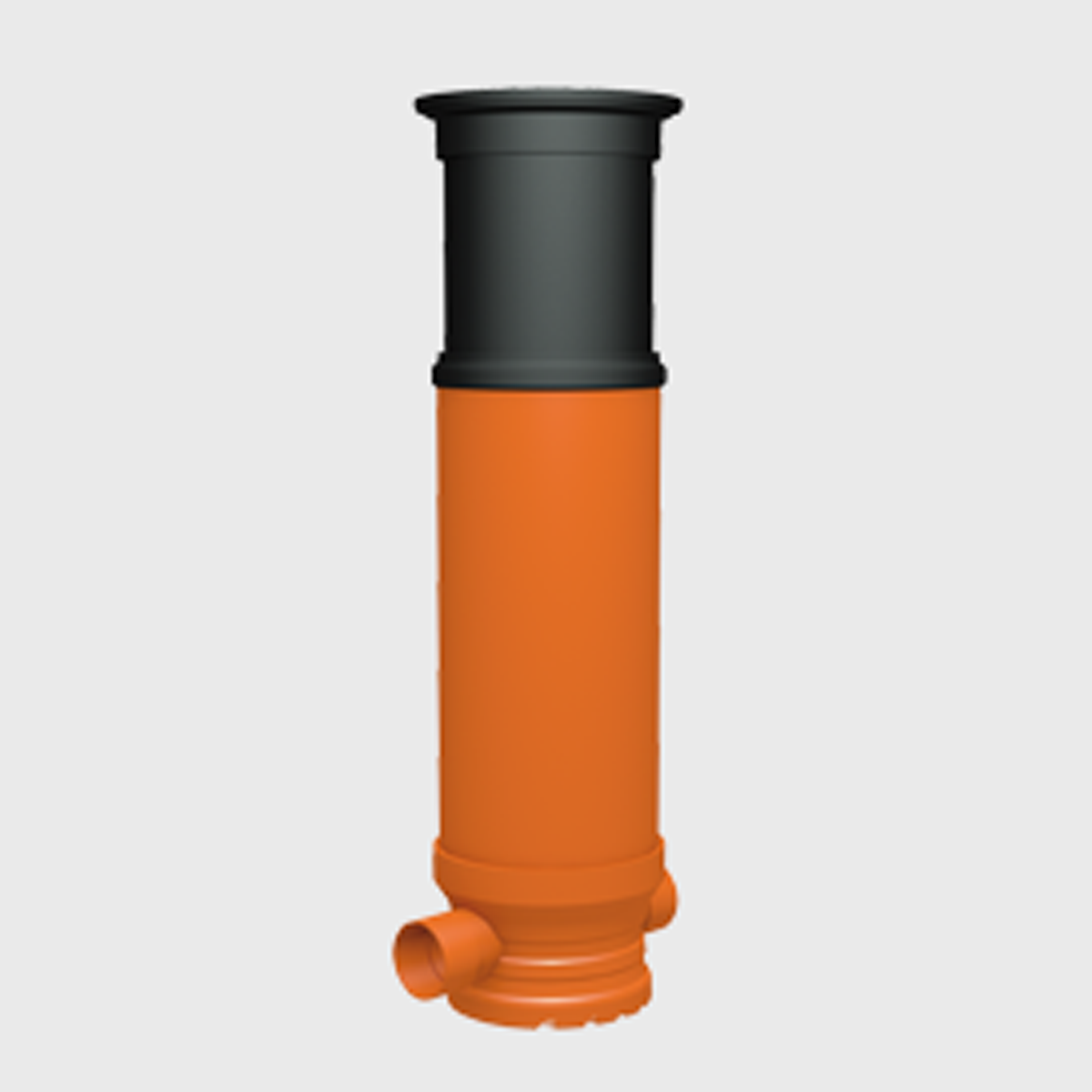

Stormwater and utility sewerage chamber CSL 560/500 for individual orders

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Technical information/specification:

Stormwater and utility sewerage chambers CSL (chamber sanitary large) for individual orders with diameter of DN 560 mm and access hole DN 500 mm.

Limits of installation

Minimum depth: 1.5 m; maximum depth: 5.0 m

Application area:

Recommended for use in construction of stormwater and utility sewerage networks in private house yards and courtyards, as well as courtyards and yards of multi-storey dwellings, and arterial lines of sewerage networks. The chamber serves for control of stormwater and utility sewerage, and for clearing works in case of blocking of stormwater and utility sewerage lines.

Material:

  • PE basis of chamber CSL DN 560 mm correspond to the requirements of EN 13598-2 and EN 476 standards.
  • Height-adjustment solid PE smooth-wall well/pipe DN/OD 560 mm corresponds to the requirements of EN 12201-2 and EN 14802 standards.
  • Telescopic PE adaptor DN 560/500 with built-in rubber sealing ring DN 500 mm corresponds to the requirements of EN 13476-3 standard, and the rubber sealing ring — to the requirements of EN 681-1 and EN 1277 standards.
  • Solid telescopic PE smooth-wall pipe DN/OD 500 mm, height 0.75 mm, corresponds to the requirements of EN 12201-2 and EN 14802 standards.
  • Cast iron frame and cover, DN 500 mm, installation class D400 (40 t) corresponds to the requirements of EN 124 standard.

Advantages of the chamber:

  • Long service life (>50 years);
  • Flexible for movements in soil (no cracking of the gully);
  • Water-tightness > 0.5 bar, watertight materials;
  • Resistant to aggressive environment; no corrosion;
  • Flexible connection to well +/- 2o;
  • The diameter of access hole allows convenient and quick CCTV control and maintenance of sewerage networks.

Chemical resistance:

Subject to ISO/TR 10358 and ISO/TR 7620, elements of the plastic well, as well as rubber sealing elements (rubber sealing rings and cuffs) are chemically resistant in pH 2 (acidic environment) and pH 12 (alkaline environment).

Stormwater and utility sewerage chambers CSL 560/500

Depth for installing: minimum 1.5 m, maximum 5 m.

Cast iron frame and cover, round, DN 500 mm, installation class D400 (40 t) with solid telescopic PE smooth-wall pipe DN/OD 500 mm, height 0.75 m
