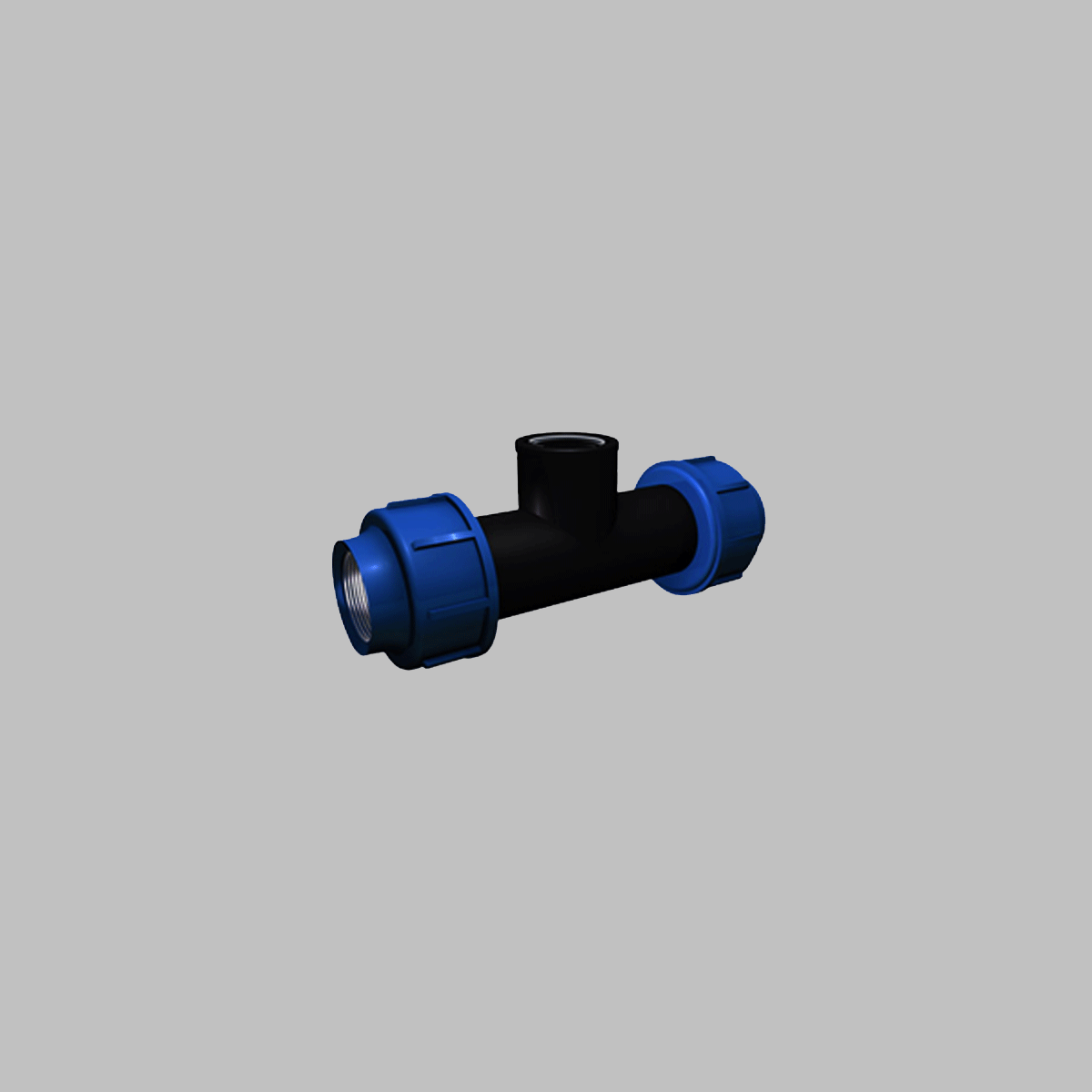

Description
Compression fittings made from polypropylene guarantee excellent watertightness in every pressure class. Rated pressure resistance for nominal diameters 20/32/40/50/63 mm is PN16, and for nominal diameters 75/90/110 mm – PN10.
|
DN / OD a [mm]
|
Thread [“]
|
DN / OD c [mm]
|
Color
|
Pressure class [bar]
|
Pack [pcs]
|
Code
|
|---|---|---|---|---|---|---|
| 20 | 1/2″ | 20 | blue/black | PN 16 | 40 | 412110020050 |
| 20 | 3/4″ | 20 | blue/black | PN 16 | 40 | 412110020075 |
| 25 | 1/2″ | 25 | blue/black | PN 16 | 25 | 412110025050 |
| 25 | 3/4″ | 25 | blue/black | PN 16 | 25 | 412110025075 |
| 25 | 1″ | 25 | blue/black | PN 16 | 25 | 412110025100 |
| 32 | 3/4″ | 32 | blue/black | PN 16 | 15 | 412110032075 |
| 32 | 1″ | 32 | blue/black | PN 16 | 15 | 412110032100 |
| 40 | 1″ | 40 | blue/black | PN 16 | 10 | 412110040100 |
| 40 | 1 1/4″ | 40 | blue/black | PN 16 | 9 | 412110040125 |
| 50 | 1 1/2″ | 50 | blue/black | PN 16 | 10 | 412110050150 |
| 63 | 2″ | 63 | blue/black | PN 16 | 11 | 412110063200 |
| 75 | 2 1/2″ | 75 | blue/black | PN 10 | 10 | 412110075250 |
| 90 | 3″ | 90 | blue/black | PN 10 | 4 | 412110090300 |
| 110 | 4″ | 110 | blue/black | PN 10 | 2 | 412110110400 |
