Description

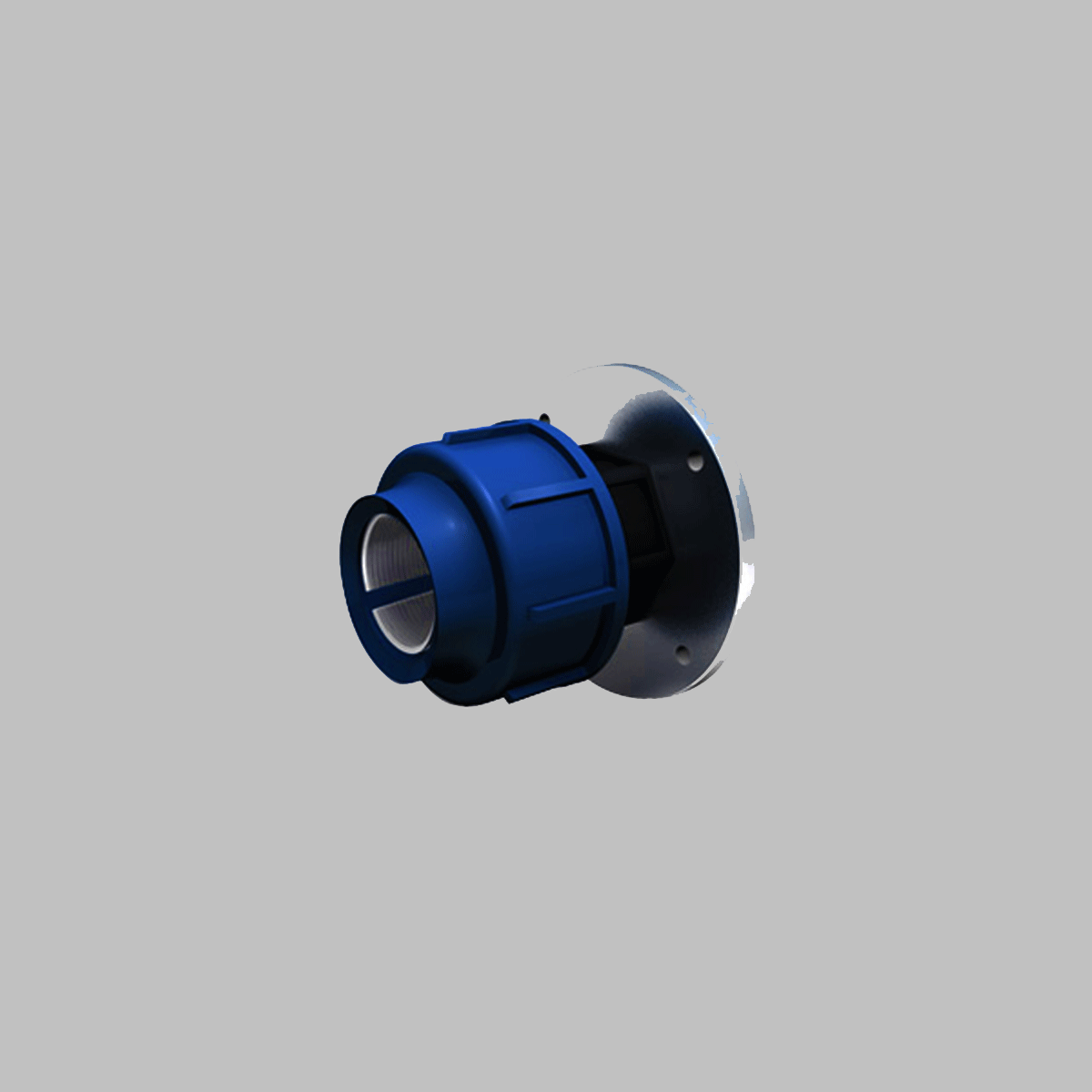

Compression fittings made from polypropylene guarantee excellent watertightness in every pressure class. Rated pressure resistance for nominal diameters 20/32/40/50/63 mm is PN16, and for nominal diameters 75/90/110 mm – PN10.
|
DN / OD [mm]
|
Flange DN [mm]
|
Color
|
Pressure class [bar]
|
Pack [pcs]
|
Code
|
|---|---|---|---|---|---|
| 50 | 50 | blue/black | PN 16 | 10 | 4121140500 |
| 63 | 50 | blue/black | PN 16 | 18 | 4121140630 |
| 75 | 65 | blue/black | PN 10 | 10 | 4121140750 |
| 90 | 80 | blue/black | PN 10 | 8 | 4121140900 |
| 110 | 100 | blue/black | PN 10 | 6 | 4121141100 |
